STPS20100HR

Aerospace 1 x 20 and 2 x 20 A - 100 V Schottky rectifier

STPS20100HR Features

* Forward current: 1 x 20 and 2 x 20 A

* Repetitive peak voltage: 100 V

* Low forward voltage drop: 0.8 V

* Maximum junction temperature: 175 °C

* Negligible switching losses

* Low capacitance

* High reverse avalanche surge capability

STPS20100HR General Description

This power Schottky rectifier is designed and packaged to comply with the ESCC5000 specification for aerospace products. Housed in hermetically sealed packages both surface mount and through hole, it is ideal for use in applications for aerospace and other harsh environments. The STPS20100HR is inte.

STPS20100HR Datasheet (91.86 KB)

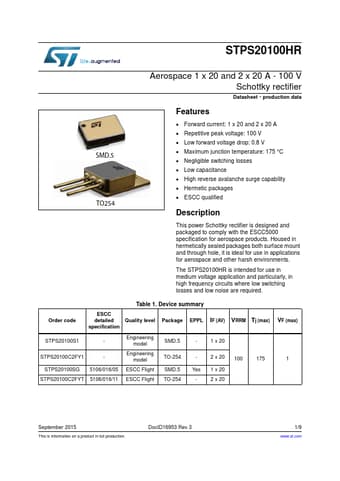

Preview of STPS20100HR PDF

Datasheet Details

Part number:

STPS20100HR

Manufacturer:

STMicroelectronics ↗

File Size:

91.86 KB

Description:

Aerospace 1 x 20 and 2 x 20 a - 100 v schottky rectifier.
