STPS20100CT

HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS20100CT Features

* Negligible switching losses Low forward voltage drop Low capacitance High reverse avalanche surge capability s s s s K A1 A2 DESCRIPTION High voltage dual Schottky rectifier suited for switchmode power supplies and other power converters. Packaged in TO-220AB, this device is intended for use in m

STPS20100CT General Description

High voltage dual Schottky rectifier suited for switchmode power supplies and other power converters. Packaged in TO-220AB, this device is intended for use in medium voltage operation, and particularly, in high frequency circuitries where low switching losses and low noise are required. ABSOLUTE MAX.

STPS20100CT Datasheet (180.73 KB)

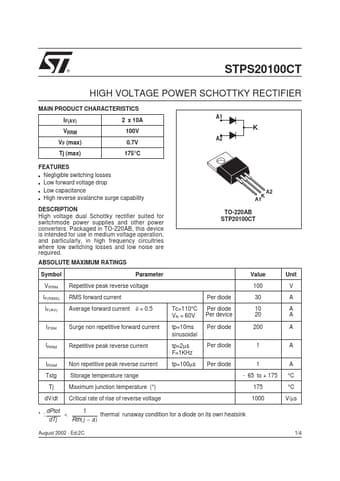

Preview of STPS20100CT PDF

Datasheet Details

Part number:

STPS20100CT

Manufacturer:

STMicroelectronics ↗

File Size:

180.73 KB

Description:

High voltage power schottky rectifier.
® STPS20100CT HIGH VOLTAGE POWER SCHOTTKY RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM VF (max) Tj (max) 2 x 10A 100V 0.7V 175°C A1 K A2 FE.
