STPS2045 Datasheet, Rectifier, ST Microelectronics

STPS2045 Features

  • Rectifier VERY SMALL CONDUCTION LOSSES NEGLIGIBLE SWITCHING LOSSES EXTREMELY FAST SWITCHING INSULATED PACKAGE: ISOWATT220AB Insulating voltage = 2000V DC Capacitance = 12pF DESCRIPTION Dual cente

PDF File Details

Part number:

STPS2045

Manufacturer:

STMicroelectronics ↗

File Size:

532.34kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. Dual center tap Schottky rectifier suited for SwitchMode Power Supply and high frequency DC to DC converters. Packaged either in TO-2

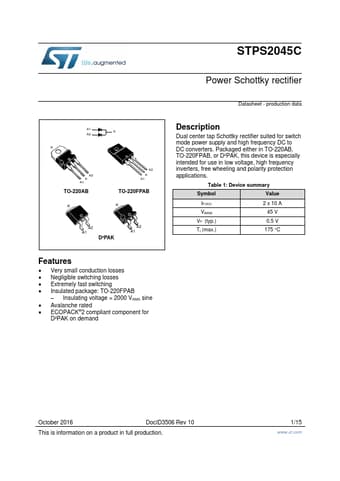

Datasheet Preview: STPS2045 📥 Download PDF (532.34kb)
Page 2 of STPS2045 Page 3 of STPS2045

STPS2045 Application

  • Applications ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) RMS forward current Average forward current δ = 0.5 Tc = 155
