STPS2045CT Datasheet, rectifier equivalent, ST Microelectronics

STPS2045CT Features

  • Rectifier
  • Very small conduction losses
  • Negligible switching losses
  • Extremely fast switching
  • Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS

PDF File Details

Part number:

STPS2045CT

Manufacturer:

STMicroelectronics ↗

File Size:

532.34kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged either in TO-

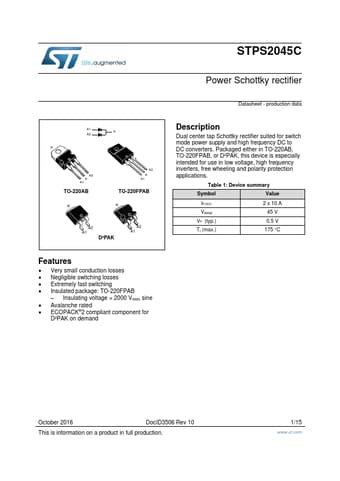

Datasheet Preview: STPS2045CT 📥 Download PDF (532.34kb)
Page 2 of STPS2045CT Page 3 of STPS2045CT

STPS2045CT Application

  • Applications Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 2 x 10 A 45 V 0.5 V 175 °C October 2016 DocID3506 Rev 10
