STPS2045CFP Datasheet, Rectifier, STMicroelectronics

STPS2045CFP Features

• Rectifier
• Very small conduction losses
• Negligible switching losses
• Extremely fast switching
• Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS

PDF File Details

Part number:

STPS2045CFP

Manufacturer:

STMicroelectronics ↗

File Size:

532.34kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged either in TO-

STPS2045CFP Application

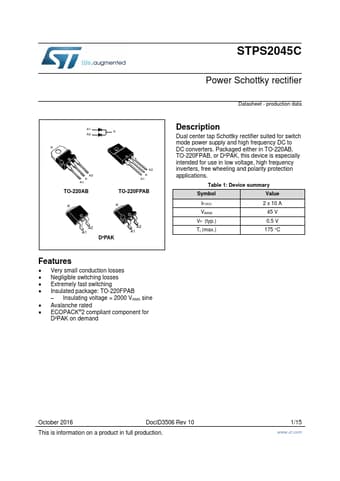

• Applications Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 2 x 10 A 45 V 0.5 V 175 °C October 2016 DocID3506 Rev 10
