STR1550 - High voltage fast-switching NPN power transistor

STMicroelectronics

STR1550 Datasheet Preview — Preview of STR1550 PDF

Datasheet Details

Part number	STR1550
Manufacturer	STMicroelectronics ↗
File Size	373.13 KB
Description	High voltage fast-switching NPN power transistor
Datasheet	STR1550-STMicroelectronics.pdf

STR1550 Product details

Description

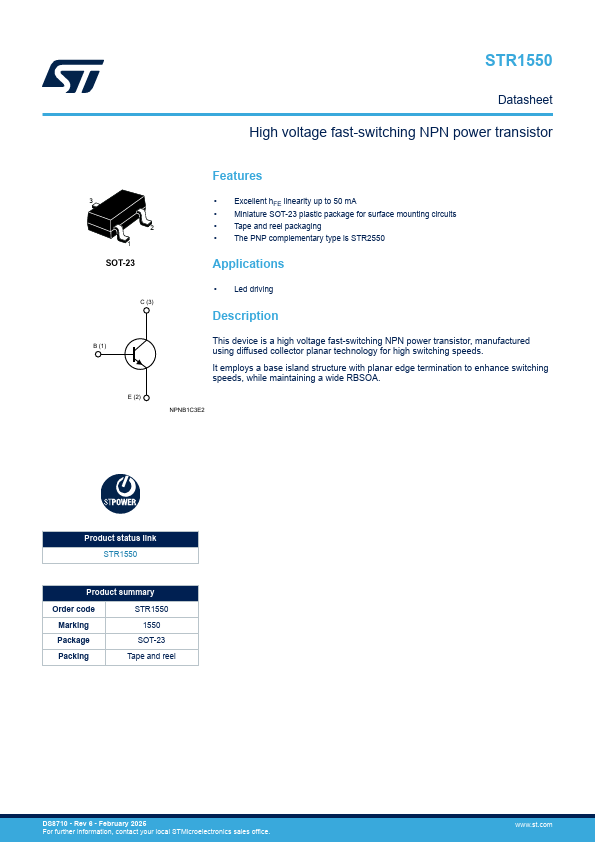

B (1) E (2) This device is a high voltage fast-switching NPN power transistor, manufactured using diffused collector planar technology for high switching speeds.It employs a base island structure with planar edge termination to enhance switching speeds, while maintaining a wide RBSOA.NPNB1C3E2 Product status link STR1550 Product summary Order code STR1550 Marking 1550 Package SOT-23 Packing Tape and reel DS8710 - Rev 6 - February 2025 For further information, contact your local ST

Features

3 2 1 SOT-23.
Excellent hFE linearity up to 50 mA.
Miniature SOT-23 plastic package for surface mounting circuits.
Tape and reel packaging.
The PNP complementary type is STR2550.
