STR2550 - High voltage fast-switching PNP power transistor

STMicroelectronics

STR2550 Datasheet Preview — Preview of STR2550 PDF

Datasheet Details

Part number	STR2550
Manufacturer	STMicroelectronics ↗
File Size	370.04 KB
Description	High voltage fast-switching PNP power transistor
Datasheet	STR2550-STMicroelectronics.pdf

STR2550 Product details

Description

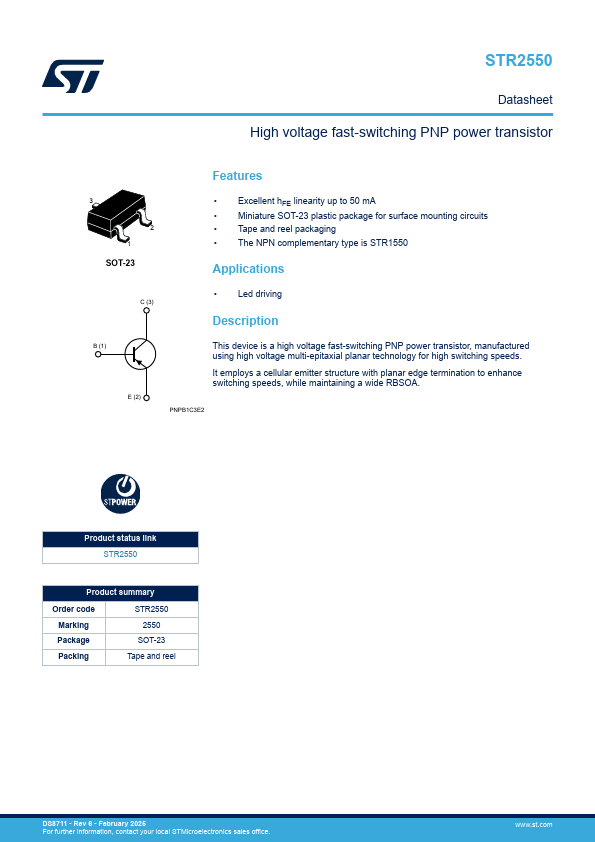

B (1) E (2) This device is a high voltage fast-switching PNP power transistor, manufactured using high voltage multi-epitaxial planar technology for high switching speeds.It employs a cellular emitter structure with planar edge termination to enhance switching speeds, while maintaining a wide RBSOA.PNPB1C3E2 Product status link STR2550 Product summary Order code STR2550 Marking 2550 Package SOT-23 Packing Tape and reel DS8711 - Rev 6 - February 2025 For further information, contac

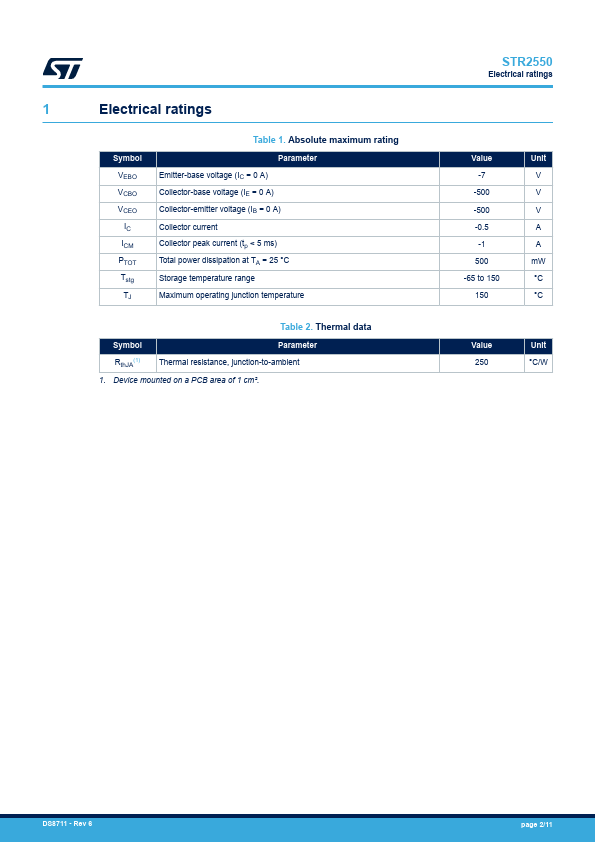

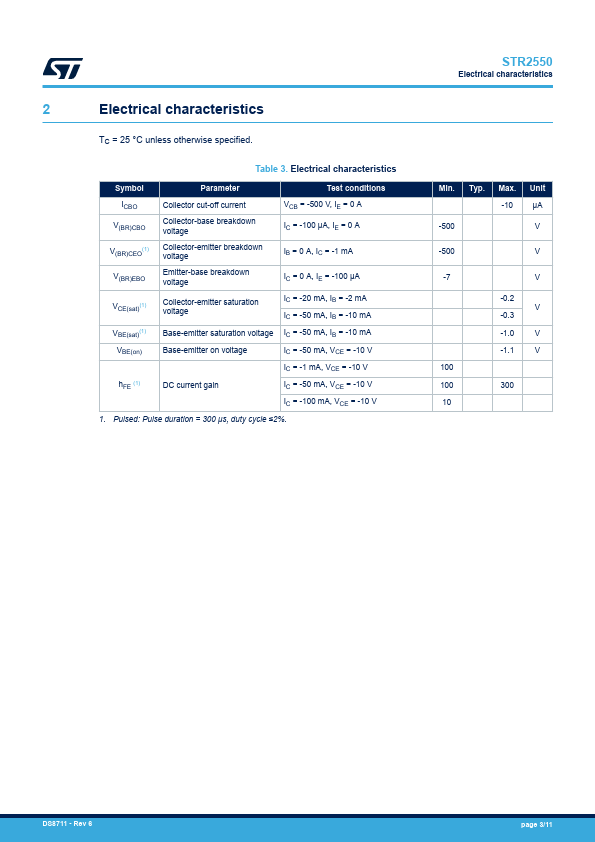

Features

3 2 1 SOT-23.
Excellent hFE linearity up to 50 mA.
Miniature SOT-23 plastic package for surface mounting circuits.
Tape and reel packaging.
The NPN complementary type is STR1550.
