STR2N2VH5 Datasheet, Mosfet, STMicroelectronics

STR2N2VH5 Features

  • Mosfet 3 1 SOT-23 2 Order code VDS RDS(on) max ID PTOT STR2N2VH5 20 V 0.03 Ω (VGS=4.5 V) 2.3 A 0.35 W
  • Low on-resistance RDS(on)
  • High avalanche ruggedness
  • L

PDF File Details

Part number:

STR2N2VH5

Manufacturer:

STMicroelectronics ↗

File Size:

441.70kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™ H5 technology. The device has been optimized t

Datasheet Preview: STR2N2VH5 📥 Download PDF (441.70kb)

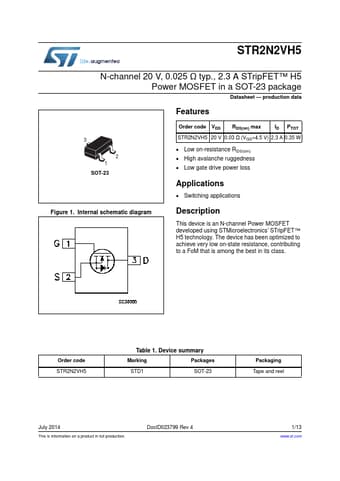

Page 2 of STR2N2VH5 Page 3 of STR2N2VH5

STR2N2VH5 Application

  • Applications
  • Switching applications Figure 1. Internal schematic diagram Description This device is an N-channel Power MOSFET developed
