STU16N60M2 N-channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

STP16N60M2, STU16N60M2 N-channel 600 V, 0.28 Ω typ., 12 A MDmesh™ M2 Power MOSFET in TO-220 and IPAK packages Datasheet - production data TAB 3 TA.
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology.

📥 Download Datasheet

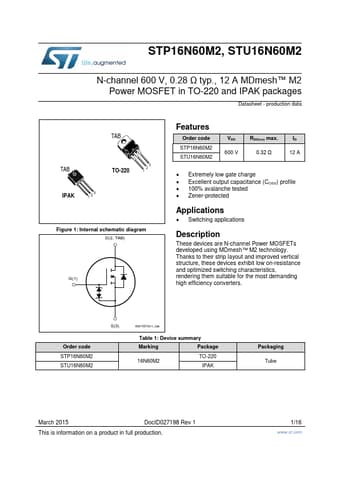

Preview of STU16N60M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code STP16N60M2 STU16N60M2 VDS 600 V RDS(on) max. 0.32 Ω ID 12 A
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* 100% avalanche tested
