STUSB03E Datasheet, Transceiver, STMicroelectronics

STUSB03E Features

  • Transceiver
  • Compliant to USB V2.0 for full-speed (12Mb/s) and low-speed (1.5Mbps) operation = ±14kV on D+, D
      – lines; ±5kV on VBUS ESD Compliant to IEC-61000-4.2 (level 3)

PDF File Details

Part number:

STUSB03E

Manufacturer:

STMicroelectronics ↗

File Size:

474.30kb

Download:

📄 Datasheet

Description:

Usb transceiver. The STUSB03E is a single chip transceiver that complies with the physical layer specifications of the Universal Serial Bus (USB) v2.0

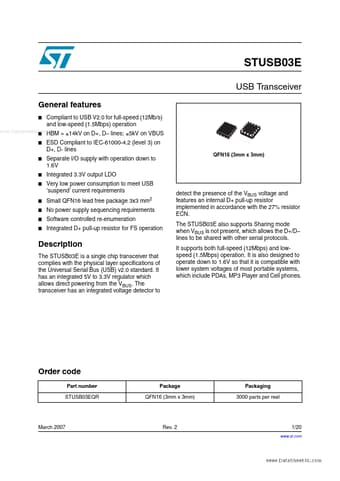

Datasheet Preview: STUSB03E 📥 Download PDF (474.30kb)
Page 2 of STUSB03E Page 3 of STUSB03E

TAGS

STUSB03E
USB
Transceiver
STMicroelectronics
