STUSB06E Datasheet - STMicroelectronics

3.3 V USB transceiver

STUSB06E Features

* Compliant to USB v2.0 for full-speed (12 Mb/s) and low-speed (1.5 Mbps) operation HBM = ± 9 kV on D+, D- lines, ± 7 kV on VREG ± 6 kV ESD compliant to IEC-61000-4-2 on D+, D-, VREG lines Separate I/O supply with operation down to 1.6

STUSB06E General Description

The STUSB06E is a single chip transceiver that complies with the physical layer specifications of the Universal Serial Bus (USB) v2.0 standard. It is powered by external 3.3 V supply and has an integrated 150 kΩ resistor to implement charger detection with weak pull-up method. www.DataSheet.net/ T.

STUSB06E Datasheet (337.80 KB)

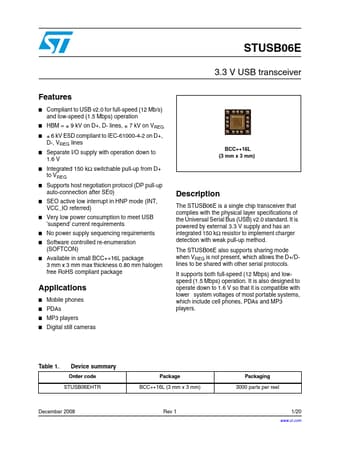

Preview of STUSB06E PDF

Datasheet Details

Part number:

STUSB06E

Manufacturer:

STMicroelectronics ↗

File Size:

337.80 KB

Description:

3.3 v usb transceiver.
