STUSB1600 Datasheet, Controller, STMicroelectronics

STUSB1600 Features

  • Controller
  • Type-C attach and cable orientation detection
  • Power role support: source/sink/DRP
  • Configurable start-up profiles
  • Integrated power switch for VCON

PDF File Details

Part number:

STUSB1600

Manufacturer:

STMicroelectronics ↗

File Size:

1.32MB

Download:

📄 Datasheet

Description:

Usb type-c controller.

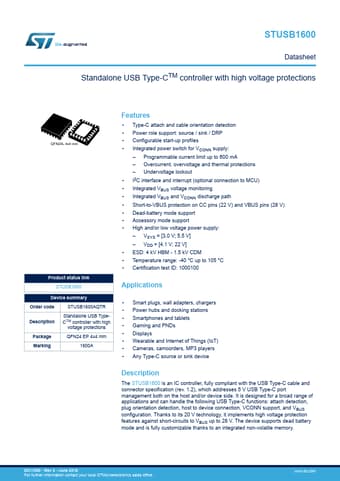

Datasheet Preview: STUSB1600 📥 Download PDF (1.32MB)
Page 2 of STUSB1600 Page 3 of STUSB1600

STUSB1600 Application

  • Applications
  • Smart plugs, wall adapters, and chargers
  • Power hubs and docking stations
  • Smartphones and tablets
