STV9420 (STV9420 / STV9421) MULTISYNC ON-SCREEN DISPLAY

CHARACTER BY CHARACTER COLOR SELECTION (UP TO 8 DIFFERENT COLORS) PROGRAMMABLE BACKGROUND (COLOR, TRANSPARENT OR WITH SHADOWING) CHARACTER BLINKING 2-WIRES ASYNCHRONOUS SERIAL MCU INTERFACE (I2C PROTOCOL) 4 x 8 BITS PWM DAC OUTPUTS ON THE STV9421 SINGLE POSITIVE 5V SUPPLY DIP16 (Plastic Package) OR.

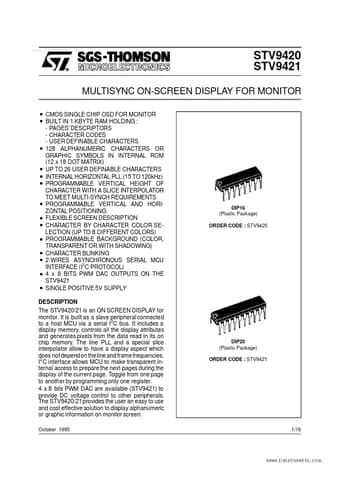

www.DataSheet4U.com STV9420 STV9421 MULTISYNC ON-SCREEN DISPLAY FOR MONITOR . . . . . . . . . . . . . . CMOS SINGLE CHIP OSD FOR MONITOR BUILT IN 1 KBYTE RAM HOLDING : - PAGES’ DESCRIPTORS - CHARACTER CODES - USER DEFINABLE CHARACTERS 128 ALPHANUMERIC CHARACTERS OR GRAPHIC SYMBOLS IN INTERNAL ROM (12 x 18 DOT MATRIX) UP TO 26 USER DEFINABLE CHARACTERS INTERNAL HORIZONTAL PLL (15 TO 120kHz) PROGRAMMABLE VERTICAL HEIGHT OF CHARACTER WITH A SLICE INTERPOLATOR TO MEET MULTI-SYNCH REQUIREMENTS PRO.

STV9420 Features

* locki

STV9420 Datasheet (258.05 KB)

STV9420 Datasheet Preview — Preview of STV9420 PDF

Datasheet Details

Part number:

STV9420

Manufacturer:

STMicroelectronics ↗

File Size:

258.05 KB

Description:

(stv9420 / stv9421) multisync on-screen display.
