STV9422 (STV9422 / STV9424) MULTISYNC ON-SCREEN DISPLAY

CHARACTER BY CHARACTER COLOR SELECTION (UP TO 8 DIFFERENT COLORS) PROGRAMMABLE BACKGROUND (COLOR, TRANSPARENT OR WITH SHADOWING) CHARACTER BLINKING 2-WIRES ASYNCHRONOUS SERIAL MCU INTERFACE (I2C PROTOCOL) 8 x 8 BITS PWM DAC OUTPUTS SINGLE POSITIVE 5V SUPPLY SHRINK 24 (Plastic Package) ORDER CODE : .

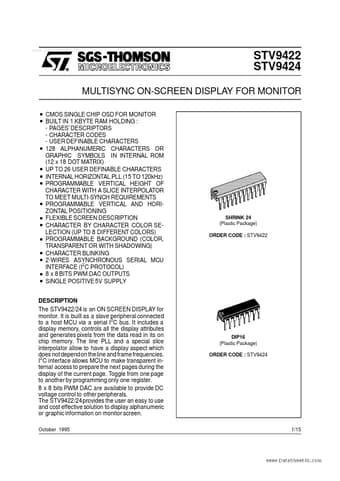

www.DataSheet4U.com STV9422 STV9424 MULTISYNC ON-SCREEN DISPLAY FOR MONITOR . . . . . . . . . . . . . . CMOS SINGLE CHIP OSD FOR MONITOR BUILT IN 1 KBYTE RAM HOLDING : - PAGES’ DESCRIPTORS - CHARACTER CODES - USER DEFINABLE CHARACTERS 128 ALPHANUMERIC CHARACTERS OR GRAPHIC SYMBOLS IN INTERNAL ROM (12 x 18 DOT MATRIX) UP TO 26 USER DEFINABLE CHARACTERS INTERNAL HORIZONTAL PLL (15 TO 120kHz) PROGRAMMABLE VERTICAL HEIGHT OF CHARACTER WITH A SLICE INTERPOLATOR TO MEET MULTI-SYNCH REQUIREMENTS PRO.

STV9422 Features

* edge

STV9422 Datasheet (262.00 KB)

STV9422 Datasheet Preview — Preview of STV9422 PDF

Datasheet Details

Part number:

STV9422

Manufacturer:

STMicroelectronics ↗

File Size:

262.00 KB

Description:

(stv9422 / stv9424) multisync on-screen display.
