STV9212 Datasheet - ST Microelectronics

Video Processor

STV9212 Features

* s General q q q q I²C-Bus Controlled Supports AC- and DC-coupled applications 5V to 8V Power Supply Matches to virtually any video amplifier DIP24S:(Plastic Package) ORDER CODE: STV9212 PictureBooST™ insertion input Full-screen PictureBooST™ via I²C-bus Context-sensitive Picture Enhancement Input a

STV9212 General Description

The STV9212 is an I²C-bus controlled color video processor designed for standard CRT monitor applications. It can drive systems where cathodes are either AC- or DC-coupled to the amplifier outputs. The three video channels provide contrast and white balance separate gain adjustments as well as one-p.

STV9212 Datasheet (335.97 KB)

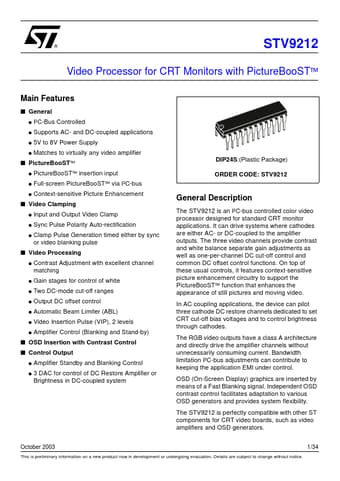

Preview of STV9212 PDF

Datasheet Details

Part number:

STV9212

Manufacturer:

STMicroelectronics ↗

File Size:

335.97 KB

Description:

Video processor.
