STV9382 Datasheet - STMicroelectronics

STV9382_STMicroelectronics.pdf

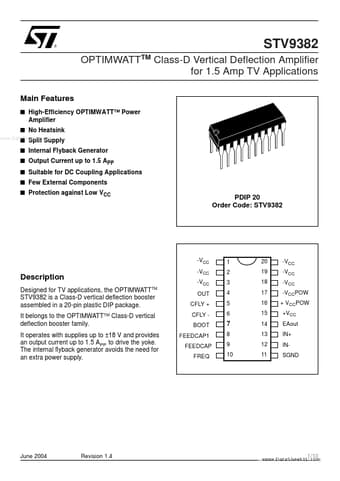

Preview of STV9382 PDF
STV9382 Datasheet Preview Page 2 STV9382 Datasheet Preview Page 3

Datasheet Details

Part number:

STV9382

Manufacturer:

STMicroelectronics ↗

File Size:

187.79 KB

Description:

Class-d vertical deflection amplifier.

STV9382, CLASS-D VERTICAL DEFLECTION AMPLIFIER

Designed for TV applications, the OPTIMWATTTM STV9382 is a Class-D vertical deflection booster assembled in a 20-pin plastic DIP package.

It belongs to the OPTIMWATTTM Class-D vertical deflection booster family.

It operates with supplies up to ±18 V and provides an output current up to 1.5 APP to dr

STV9382 Features

* High-Efficiency OPTIMWATTTM Power Amplifier

* No Heatsink www.DataSheet4U.com

* Split Supply

* Internal Flyback Generator

* Output Current up to 1.5 APP

* Suitable for DC Coupling Applications

* Few External Components

* Protection against Low V CC PDIP 20 Order
