STV9306B Datasheet, System, STMicroelectronics

STV9306B Features

  • System s Fully I²C controlled s DMOS Power Half-bridge Amplifier s DC Coupled Operation s Internal Flyback Generator (Up to 60 V) s Self Adapted Sawtooth (50/60 Hz) s 100 Hz Operation s Vertic

PDF File Details

Part number:

STV9306B

Manufacturer:

STMicroelectronics ↗

File Size:

134.39kb

Download:

📄 Datasheet

Description:

Bus-controlled vertical deflection system. The STV9306B is a fully I²C controlled vertical deflection IC designed for use in 110°, 4:3 or 16:9 CRT applications. It integrates b

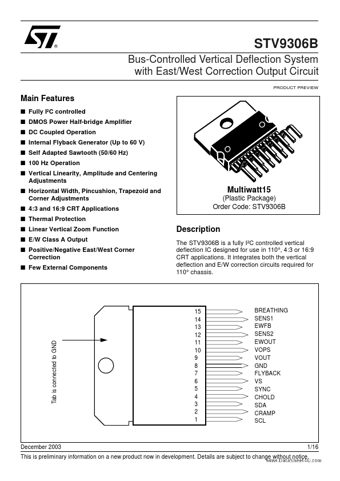

Datasheet Preview: STV9306B 📥 Download PDF (134.39kb)
Page 2 of STV9306B Page 3 of STV9306B

STV9306B Application

  • Applications s Thermal Protection s Linear Vertical Zoom Function s E/W Class A Output s Positive/Negative East/West Corner Correction s Few Externa
