STV9380A Datasheet - STMicroelectronics

CLASS-D VERTICAL DEFLECTION AMPLIFIER

STV9380A Features

* s High-Efficiency Power Amplifier s No Heatsink www.DataSheet4U.com s Split Supply s Internal Flyback Generator s Output Current up to 2.5 APP s Suitable for DC Coupling Applications s Few External Components s Protection against Low VCC PDIP 20 Order Code: STV9380A -VCC 1 2 3 4 5 6 7 8 9 10 20

STV9380A General Description

Designed for TV and monitor applications, the STV9380A is a Class-D vertical deflection booster assembled in a 20-pin plastic DIP package. It operates with supplies up to ±18 V and provides an output current up to 2.5 APP to drive the yoke. The internal flyback generator avoids the need for an extra.

STV9380A Datasheet (134.28 KB)

Preview of STV9380A PDF

Datasheet Details

Part number:

STV9380A

Manufacturer:

STMicroelectronics ↗

File Size:

134.28 KB

Description:

Class-d vertical deflection amplifier.

📁 Related Datasheet

STV9380 CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)

STV9381 CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)

STV9382 CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)

STV9383 CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)

STV9302 Vertical Deflection Booster (ST Microelectronics)

STV9302A Vertical Deflection Booster (ST Microelectronics)

ADP2370 Vertical Deflection Booster (STMicroelectronics)

STV9303 PULSE DRIVEN VERTICAL BOOSTER (ST Microelectronics)

STV9306 BUS CONTROLLED VERTICAL DEFLECTION SYSTEM WITH EAST/WEST CORRECTION OUTPUT CIRCUIT (ST Microelectronics)

STV9306A Bus Controlled Vertical Deflection System (ST Microelectronics)

TAGS

STV9380A CLASS-D VERTICAL DEFLECTION AMPLIFIER STMicroelectronics

Image Gallery

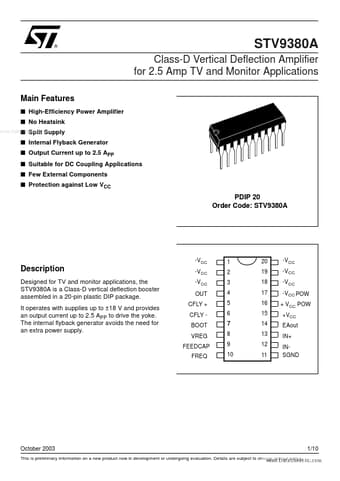

STV9380A Datasheet Preview Page 2 STV9380A Datasheet Preview Page 3
