STV9383 Datasheet - STMicroelectronics

CLASS-D VERTICAL DEFLECTION AMPLIFIER

STV9383 Features

* s High-Efficiency Power Amplifier s No Heatsink www.DataSheet4U.com s Split Supply s Internal Flyback Generator s Output Current up to 2.0 APP s Suitable for DC Coupling Applications s Few External Components s Protection against Low VCC PDIP 20 Order Code: STV9383 -VCC 1 2 3 4 5 6 7 8 9 10 20

STV9383 General Description

Designed for TV and monitor applications, the STV9383 is a Class-D vertical deflection booster assembled in a 20-pin plastic DIP package. It operates with supplies up to ±18 V and provides an output current up to 2.0 APP to drive the yoke. The internal flyback generator avoids the need for an extra .

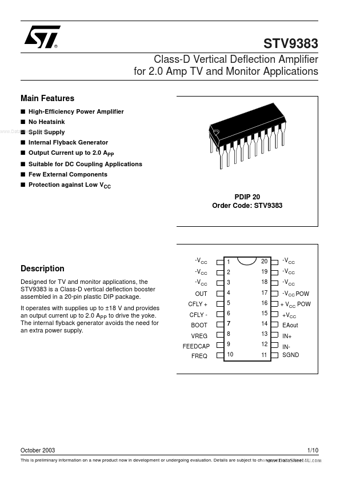

STV9383 Datasheet (134.56 KB)

Preview of STV9383 PDF

Datasheet Details

Part number:

STV9383

Manufacturer:

STMicroelectronics ↗

File Size:

134.56 KB

Description:

Class-d vertical deflection amplifier.
