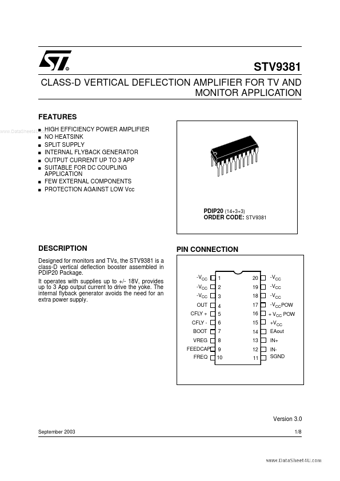

Preview of STV9381 PDF
STV9381 Datasheet Preview Page 2 STV9381 Datasheet Preview Page 3

Datasheet Details

Part number:

STV9381

Manufacturer:

STMicroelectronics ↗

File Size:

120.23 KB

Description:

Class-d vertical deflection amplifier.

STV9381, CLASS-D VERTICAL DEFLECTION AMPLIFIER

Designed for monitors and TVs, the STV9381 is a class-D vertical deflection booster assembled in PDIP20 Package.

It operates with supplies up to +/- 18V, provides up to 3 App output current to drive the yoke.

The internal flyback generator avoids the need for an extra power supply.

PIN CONNECTION
