VERTICAL DEFLECTION BOOSTER

STV9379 General Description

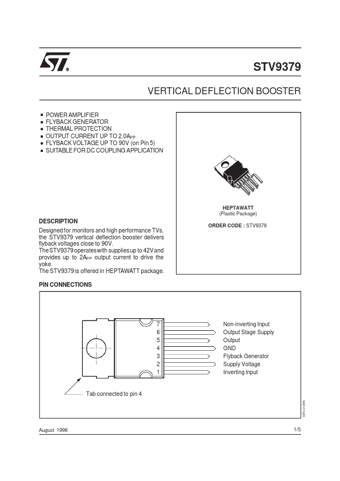

Designed for monitors and high performance TVs, the STV9379 vertical deflection booster delivers flyback voltages close to 90V. TheSTV9379 operateswith suppliesup to 42Vand provides up to 2APP output current to drive the yoke. The STV9379 is offered in HEPTAWATT package. PIN CONNECTIONS ORDER CODE .

STV9379 Datasheet (48.88 KB)

STV9379 Datasheet Preview — Preview of STV9379 PDF

Datasheet Details

Part number:

STV9379

Manufacturer:

STMicroelectronics ↗

File Size:

48.88 KB

Description:

Vertical deflection booster.
STV9379 VERTICAL DEFLECTION BOOSTER . . . . . . POWER AMPLIFIER FLYBACK GENERATOR THERMAL PROTECTION OUTPUT CURRENT UP TO 2.0APP FLYBACK VOLTAGE UP .
