STW46NF30 Datasheet - STMicroelectronics

N-channel MOSFET

STW46NF30 Features

* TAB TAB Type STB46NF30 STP46NF30 STW46NF30

* VDSS 300 V 300 V 300 V RDS(on) max < 0.075 Ω < 0.075 Ω < 0.075 Ω ID 42 A 42 A 42 A Pw 3 300 W 300 W 300 W 1 1 2 3 D²PAK TO-220 Exceptional dv/dt capability 100% avalanche tested Low gate charge TO-247 2 1 3 Applications

STW46NF30 General Description

These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DCDC converters for telecom and co.

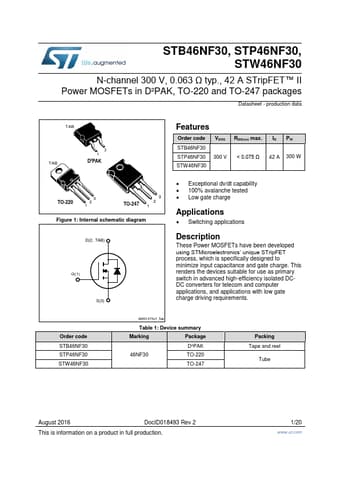

STW46NF30 Datasheet (792.47 KB)

Preview of STW46NF30 PDF

Datasheet Details

Part number:

STW46NF30

Manufacturer:

STMicroelectronics ↗

File Size:

792.47 KB

Description:

N-channel mosfet.
STB46NF30, STP46NF30, STW46NF30 N-channel 300 V, 0.063 Ω typ, 42 A, STripFET™ II Power MOSFET in D2PAK, TO-220 and TO-247 packages Datasheet .
