TPP25011

OVERVOLTAGE and OVERCURRENT PROTECTION

TPP25011 Features

* UNIDIRECTIONAL FUNCTION PROGRAMMABLE BREAKDOWN VOLTAGE UP TO 250 V PROGRAMMABLE CURRENT LIMITATION FROM 40 mA TO 500 mA SURGE CURRENT CAPABILITY IPP = 30A 10/1000 µs DESCRIPTION Dedicated to sensitive telecom equipment protection, this device can provide both voltage and current triggered protection

TPP25011 General Description

Dedicated to sensitive telecom equipment protection, this device can provide both voltage and current triggered protection with a very tight tolerance. The breakdown voltage can be easily programmed by using an external zener diode. A multiple protection mode can be also performed when using several.

TPP25011 Datasheet (55.45 KB)

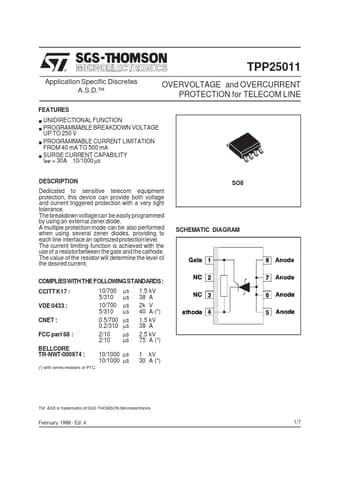

Preview of TPP25011 PDF

Datasheet Details

Part number:

TPP25011

Manufacturer:

STMicroelectronics ↗

File Size:

55.45 KB

Description:

Overvoltage and overcurrent protection.
