TPP206080 - Synchronous Step-Down DC-DC Voltage Converter

3PEAK

📥 Download Datasheet

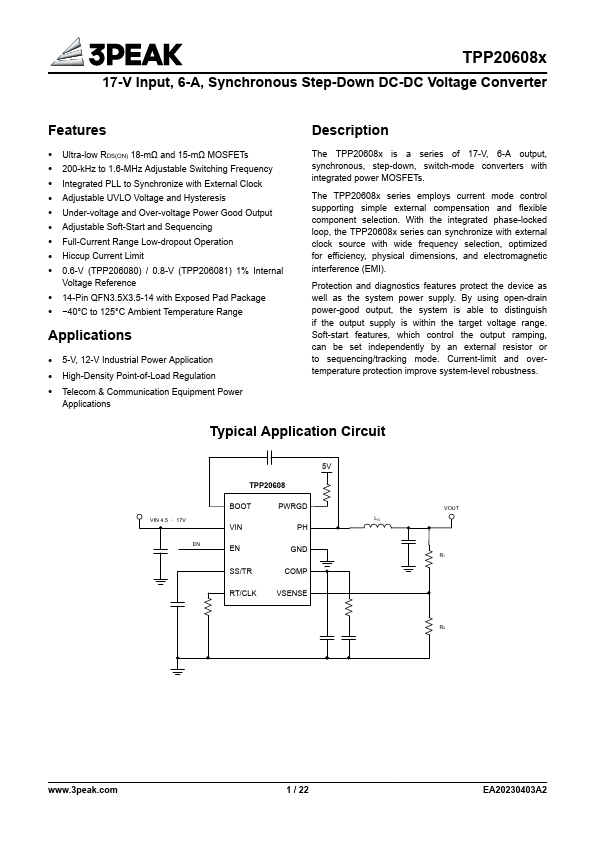

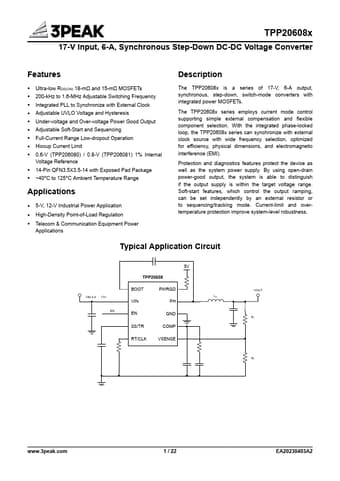

TPP206080 Datasheet Preview — Preview of TPP206080 PDF

datasheet Preview Page 2

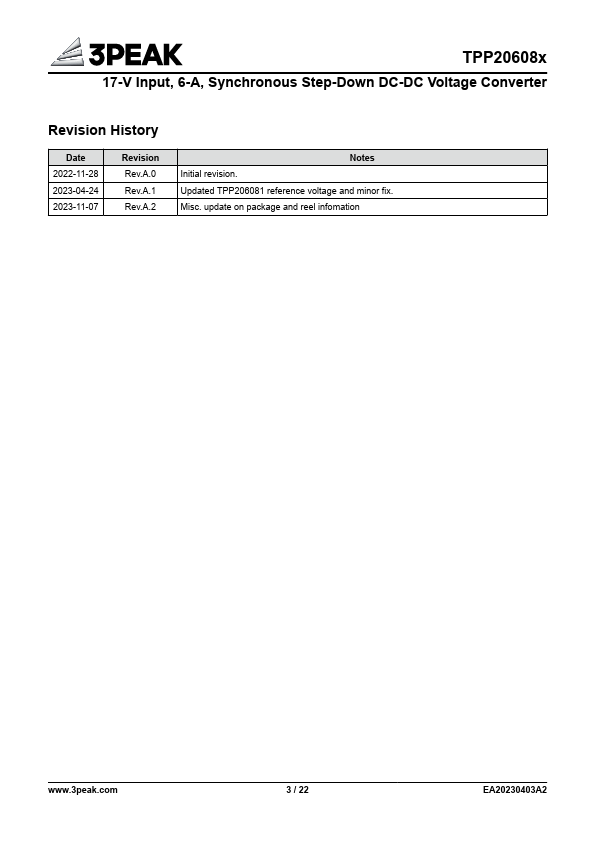

datasheet Preview Page 3

Datasheet Details

Part number	TPP206080
Manufacturer	3PEAK
File Size	1.58 MB
Description	Synchronous Step-Down DC-DC Voltage Converter
Datasheet	TPP206080-3PEAK.pdf

TPP206080 Product details

Description

The TPP20608x is a series of 17-V, 6-A output, synchronous, step-down, switch-mode converters with integrated power MOSFETs.

Features

Ultra-low RDS(ON) 18-mΩ and 15-mΩ MOSFETs.
200-kHz to 1.6-MHz Adjustable Switching Frequency.
Integrated PLL to Synchronize with External Clock.
Adjustable UVLO Voltage and Hysteresis.
Under-voltage and Over-voltage Power Good Output.
Adjustable Soft-Start and Sequencing.
Full-Current Range Low-dropout Operation.
Hiccup Current Limit.
0.6-V (TPP206080) / 0.8-V (TPP206081) 1% Internal Voltage Reference.
14-.
