TPP2020 - 2-A Synchronous Step-Down Voltage Regulator

3PEAK

📥 Download Datasheet

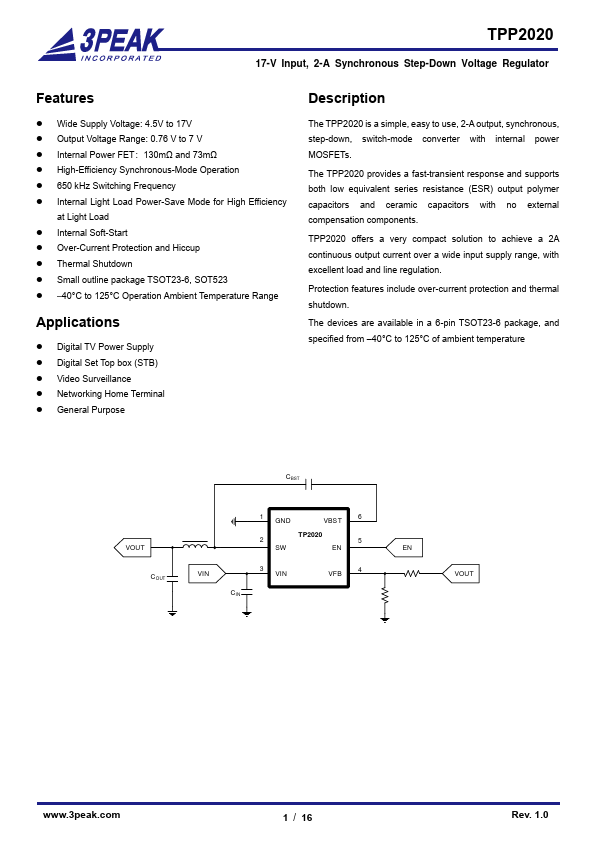

TPP2020 Datasheet Preview — Preview of TPP2020 PDF

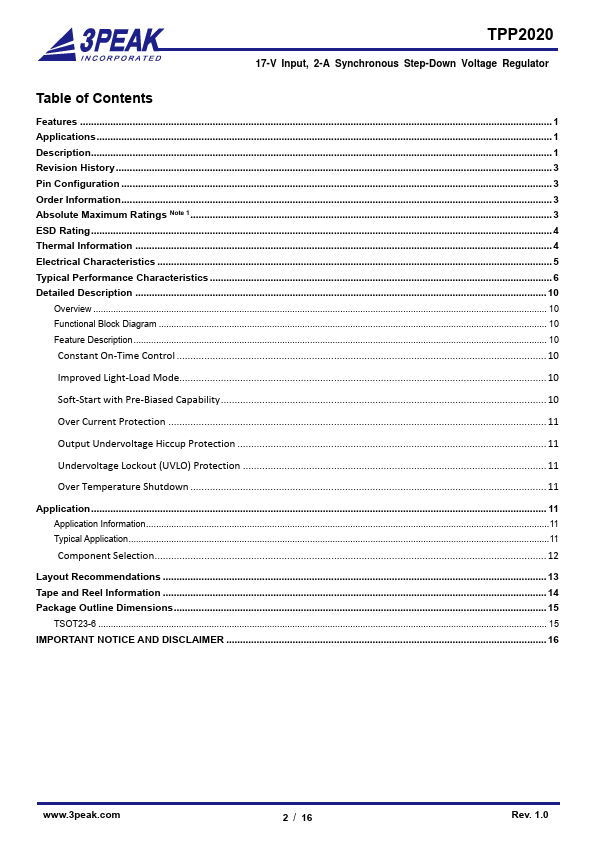

datasheet Preview Page 2

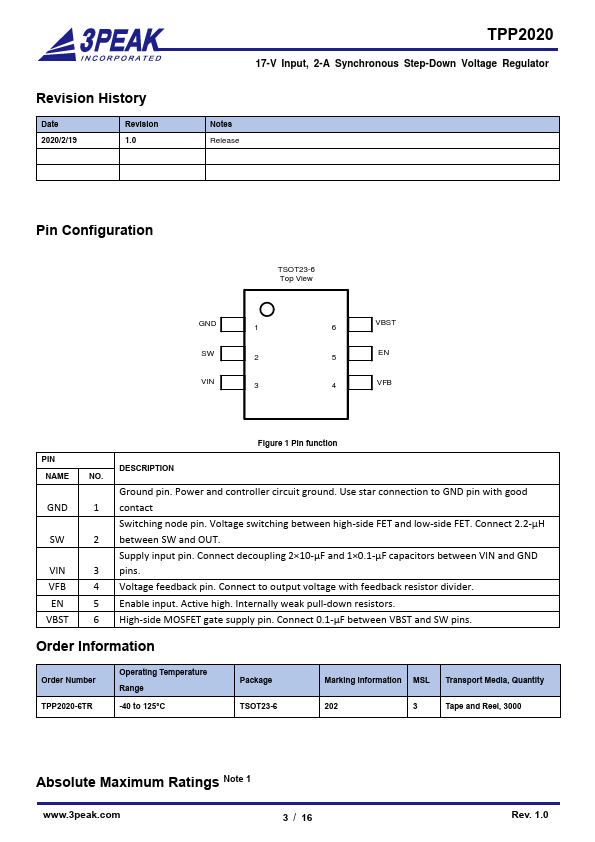

datasheet Preview Page 3

Datasheet Details

Part number	TPP2020
Manufacturer	3PEAK
File Size	1.49 MB
Description	2-A Synchronous Step-Down Voltage Regulator
Datasheet	TPP2020-3PEAK.pdf

TPP2020 Product details

Description

The TPP2020 is a simple, easy to use, 2-A output, synchronous, step-down, switch-mode converter with internal power MOSFETs.

Features

Wide Supply Voltage: 4.5V to 17V.
Output Voltage Range: 0.76 V to 7 V.
Internal Power FET：130mΩ and 73mΩ.
High-Efficiency Synchronous-Mode Operation.
650 kHz Switching Frequency.
Internal Light Load Power-Save Mode for High Efficiency at Light Load.
Internal Soft-Start.
Over-Current Protection and Hiccup.
Thermal Shutdown.
Small outline package TSOT23-6, SOT523.
40°C to 125°C Operation Ambient Temperature Range.
