TS3011 - Rail-to-rail high-speed comparator

TS3011 Description

SC70-5 SOT23-5 DFN8 2 x 2 wettable flanks Product status link TS3011 TS3011 Datasheet Rail-to-rail high-speed comparator .
The TS3011 single comparator features a high-speed response time with rail-to-rail inputs.

TS3011 Features

* Propagation delay: 8 ns
* Low current consumption: 470 μA typ. at 5 V
* Rail-to-rail inputs
* Push-pull outputs
* Supply operation from 2.2 to 5 V
* Wide temperature range: -40 °C to 125 °C
* ESD tolerance: 2 kV HBM/200 V MM
* Availab

TS3011 Applications

* Telecoms
* Instrumentation
* Signal conditioning
* High-speed sampling systems
* Portable communication systems

📥 Download Datasheet

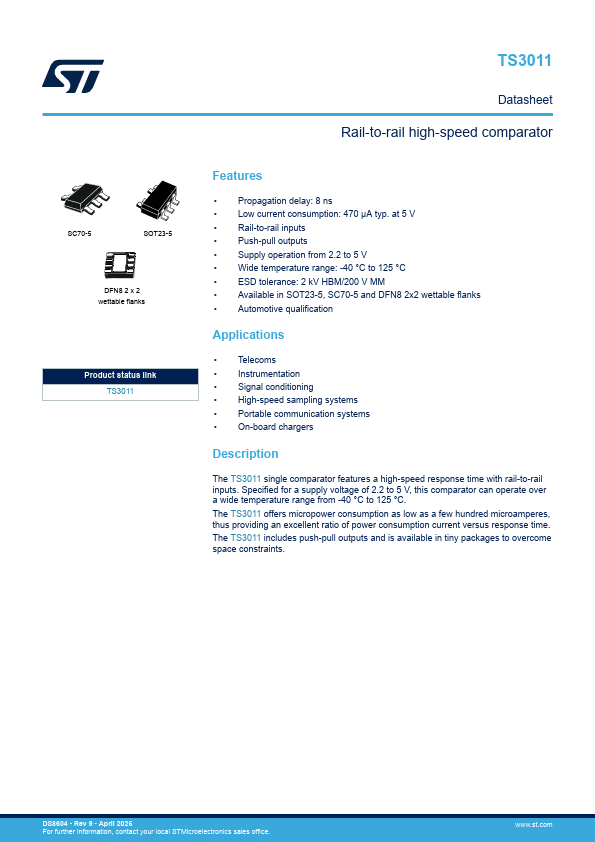

Preview of TS3011 PDF

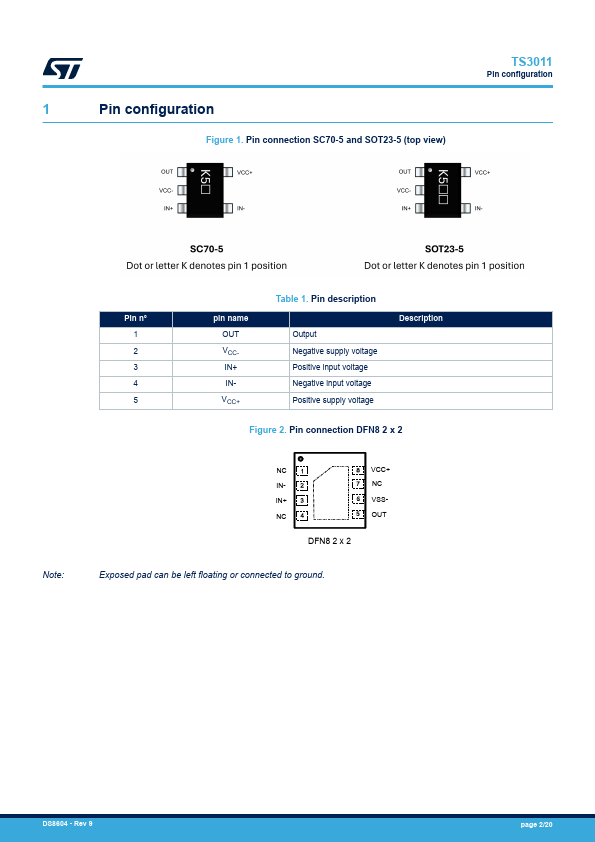

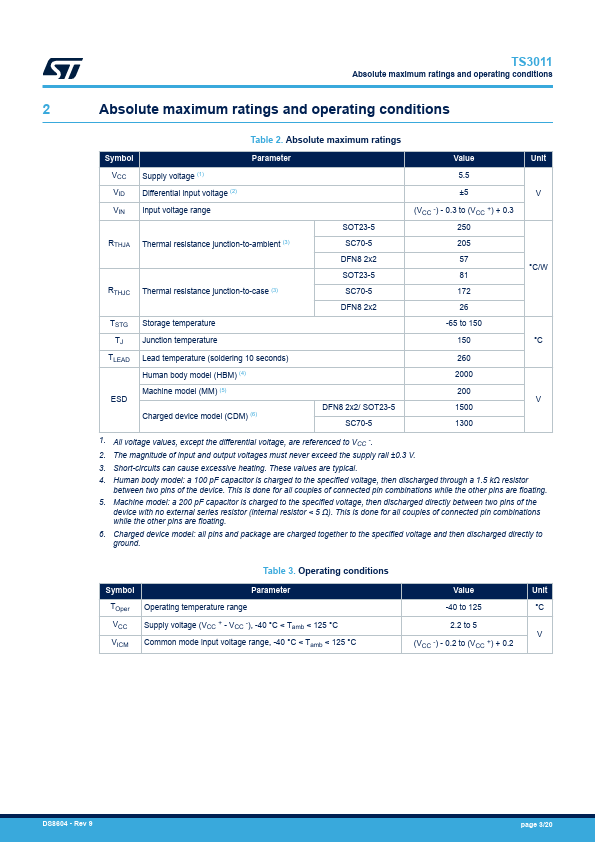

datasheet Preview Page 2 datasheet Preview Page 3
