TS3021 Datasheet, Comparator, STMicroelectronics

TS3021 Features

  • Comparator
  • Propagation delay: 38 ns
  • Low current consumption: 73 µA
  • Rail-to-rail inputs
  • Push-pull outputs
  • Supply operation from 1.8 to 5 V

PDF File Details

Part number:

TS3021

Manufacturer:

STMicroelectronics ↗

File Size:

605.54kb

Download:

📄 Datasheet

Description:

Rail-to-rail 1.8v high-speed comparator. The TS3021, TS3021A single comparator features high-speed response time with rail-to-rail inputs. With a supply voltage specified fro

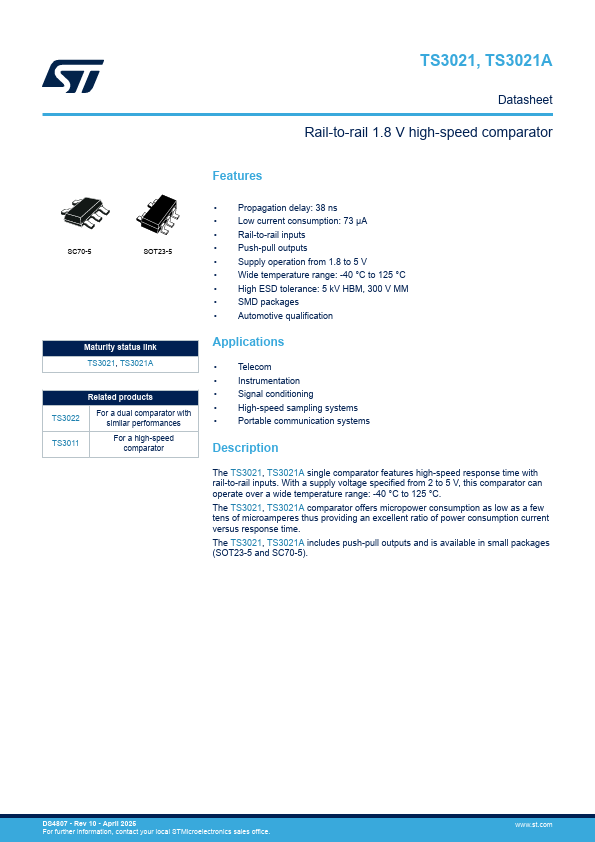

Datasheet Preview: TS3021 📥 Download PDF (605.54kb)

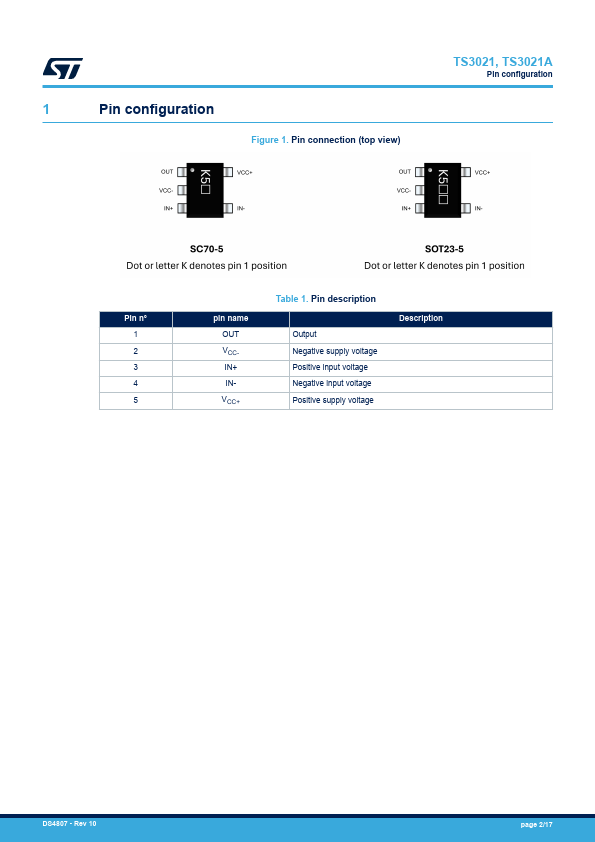

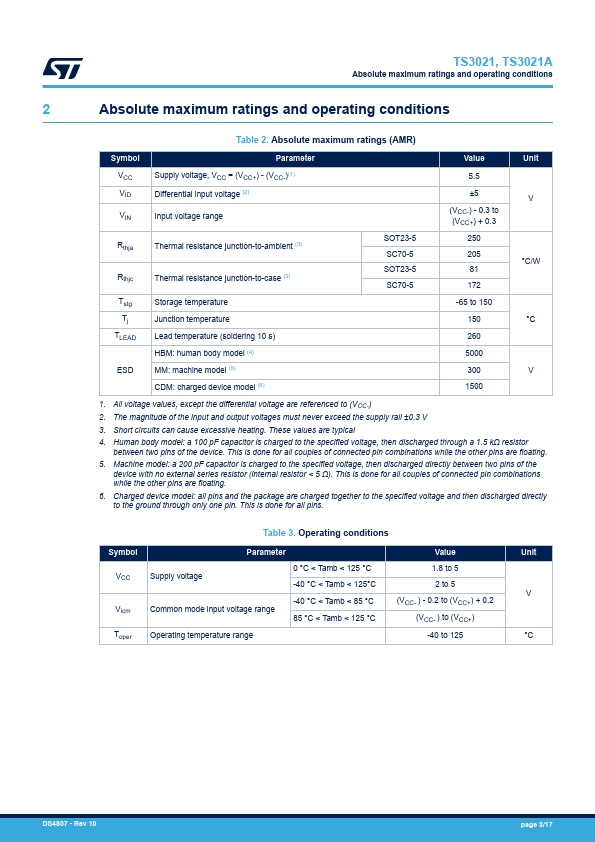

Page 2 of TS3021 Page 3 of TS3021

TS3021 Application

  • Applications
  • Telecom
  • Instrumentation
  • Signal conditioning
  • High-speed sampling systems
  • Portable comm
