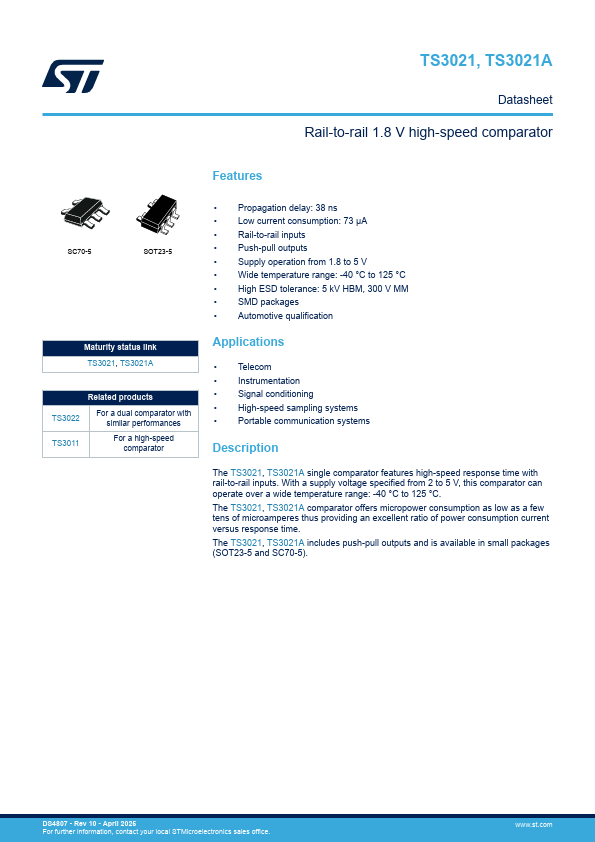

TS3021A Datasheet, Comparator, STMicroelectronics

TS3021A Features

• Comparator
• Propagation delay: 38 ns
• Low current consumption: 73 µA
• Rail-to-rail inputs
• Push-pull outputs
• Supply operation from 1.8 to 5 V

PDF File Details

Part number:

TS3021A

Manufacturer:

STMicroelectronics ↗

File Size:

605.54kb

Download:

📄 Datasheet

Description:

Rail-to-rail 1.8v high-speed comparator. The TS3021, TS3021A single comparator features high-speed response time with rail-to-rail inputs. With a supply voltage specified fro

TS3021A Application

• Applications
• Telecom
• Instrumentation
• Signal conditioning
• High-speed sampling systems
• Portable comm
