TS4040 Datasheet, Reference, STMicroelectronics

TS4040 Features

  • Reference
  • 2.5V output voltage
  • Ultra low current consumption: 40µA typ.
  • High precision @ 25°C: ±2% and ±1%
  • High stability when used with capacitive loads

PDF File Details

Part number:

TS4040

Manufacturer:

STMicroelectronics ↗

File Size:

137.17kb

Download:

📄 Datasheet

Description:

2.5v micropower shunt voltage reference. The TS4040 is a low power shunt voltage reference providing a stable 2.5V output voltage over the industrial temperature range (-40°C

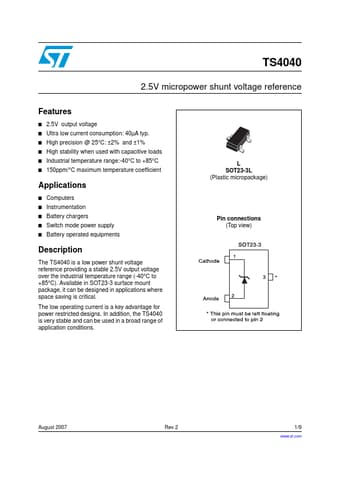

Datasheet Preview: TS4040 📥 Download PDF (137.17kb)
Page 2 of TS4040 Page 3 of TS4040

TS4040 Application

  • Applications
  • Computers
  • Instrumentation
  • Battery chargers
  • Switch mode power supply
  • Battery operated
