TS420-600H, TS420, Sensitive gate 4A SCRs

.
Thanks to highly sensitive triggering levels, the device is suitable for all applications where the available gate current is limited, such as motor c.

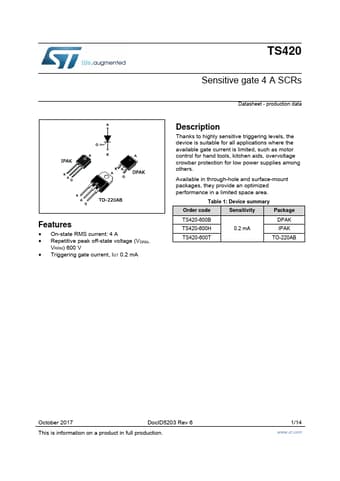

datasheet Preview Page 1 from Datasheet4u.com

TS420_STMicroelectronics.pdf

TS420-600H Datasheet Preview — This datasheet PDF includes multiple part numbers: TS420-600H, TS420. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TS420-600H, TS420

Manufacturer:

STMicroelectronics ↗

File Size:

1.05 MB

Description:

Sensitive gate 4A SCRs

Note:

This datasheet PDF includes multiple part numbers: TS420-600H, TS420.
Please refer to the document for exact specifications by model.

Features

* On-state RMS current: 4 A
* Repetitive peak off-state voltage (VDRM, VRRM) 600 V

Applications

* where the available gate current is limited, such as motor control for hand tools, kitchen aids, overvoltage crowbar protection for low power supplies among others. Available in through-hole and surface-mount packages, they provide an optimized performance in a limited space area. Table 1: Device
