TS4264G Datasheet - Taiwan Semiconductor Company

5V/150mA Fixed-Voltage Ultra Low LDO

TS4264G Features

* Fixed Output Voltage 5V

* Output Voltage Tolerance ±3%

* 150mA Current Capability

* Ultra Low Quiescent Current 40µA (Typ.)

* Over Temperature Protection

* Short-Circuit Proof

* Reverse Polarity Proof

* Wide Temperature Polarity Range

* Suitable for use in Autom

TS4264G General Description

The TS4264GCW50 is a monolithic integrated low-drop fixed voltage regulator which can supply loads up to 150mA. It is functional compatible to the TS4264CW50 but has a reduced quiescent current of typ. 40µA. The TS4264GCW50 is especially designed for all applications which require very low quiescent.

TS4264G Datasheet (179.95 KB)

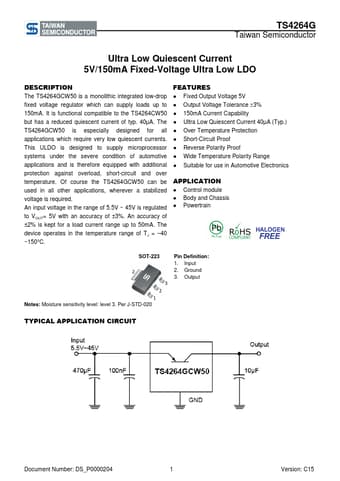

TS4264G Datasheet Preview — Preview of TS4264G PDF

Datasheet Details

Part number:

TS4264G

Manufacturer:

Taiwan Semiconductor Company

File Size:

179.95 KB

Description:

5v/150ma fixed-voltage ultra low ldo.
