TS4266G

150mA Ultra Low Drop Out Voltage Regulator

TS4266G Features

* Fixed output voltage 5V Output voltage tolerance +/-3 % 150mA current capability Ultra low drop out voltage Very low current consumption 40uA (typ) Over temperature protection Short-circuit proof Reverse polarity proof Wide temperature range Suitable for use in automotive electronics www.DataSheet4U

TS4266G General Description

TS4266G is a 5V low-drop fixed-voltage regulator in an SOT-223-4L package. It can be switched ON and OFF by the Inhibit pin. It is functional and pin compatible to the TS4266, but with a reduced quiescent current of <1uA in OFF mode and 40uA in ON mode. The TS4266G is especially designed for all app.

TS4266G Datasheet (149.04 KB)

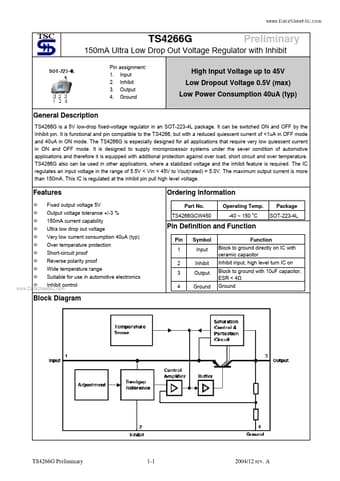

Preview of TS4266G PDF

Datasheet Details

Part number:

TS4266G

Manufacturer:

Taiwan Semiconductor Company

File Size:

149.04 KB

Description:

150ma ultra low drop out voltage regulator.
TS4266G Pin assignment: 1. Input 2. Inhibit 3. Output 4. Ground Preliminary 150mA Ultra Low Drop Out Voltage Regulator with Inhibit High Input Volta.
