TS4041 Datasheet, reference, STMicroelectronics

TS4041 Features

  • Reference
  • 1.225V typical output voltage
  • Ultra low operating current: 65µA maximum at 25°C
  • High precision @ 25°C
      – +/- 2%
      – +/- 1%

PDF File Details

Part number:

TS4041

Manufacturer:

STMicroelectronics ↗

File Size:

121.33kb

Download:

📄 Datasheet

Description:

1.225v micropower shunt voltage reference. The TS4041 is a low power shunt voltage reference providing a stable 1.225V output voltage over the industrial temperature range (-40

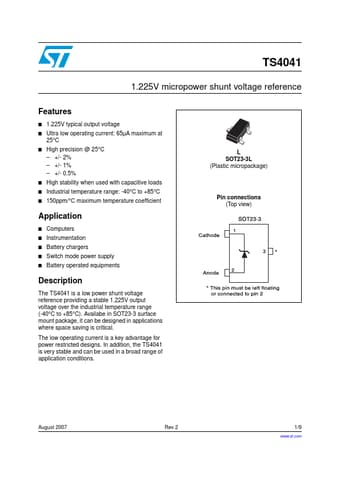

Datasheet Preview: TS4041 📥 Download PDF (121.33kb)
Page 2 of TS4041 Page 3 of TS4041

TS4041 Application

  • Applications where space saving is critical. The low operating current is a key advantage for power restricted designs. In addition, the TS4041 is v
