TS461 Datasheet, Amplifiers, STMicroelectronics

TS461 Features

  • Amplifiers LARGE OUTPUT SWING (±2.4V @ VCC = ±2.5V) LOW NOISE LEVEL : 4nV/ √ Hz  LOW DISTORTION : 0.003% OPERATING RANGE : 2.7V to 12V AVAILABLE IN SOT23-5 MICROPACKAGE Output 1 5 VCC V

PDF File Details

Part number:

TS461

Manufacturer:

STMicroelectronics ↗

File Size:

75.26kb

Download:

📄 Datasheet

Description:

Output rail to rail operational amplifiers. The TS46x is operational amplifiers able to operate with voltages as low as ±1.35V and to reach a minimum of ±2Vpp of output swing wh

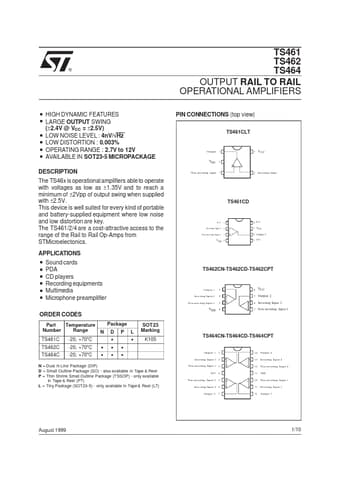

Datasheet Preview: TS461 📥 Download PDF (75.26kb)
Page 2 of TS461 Page 3 of TS461

TS461 Application

  • Applications Sound cards PDA CD players Recording equipments Multimedia Microphone preamplifier TS462CN-TS462CD-TS462CPT Output 1 Inve rting Inp ut
