TS4621ML - High-performance class-G stereo headphone amplifier

STMicroelectronics

The TS4621ML by STMicroelectronics is a High-performance class-G stereo headphone amplifier. Below is the official datasheet preview.

📥 Download Datasheet

TS4621ML High-performance class-G stereo headphone amplifier by STMicroelectronics - Datasheet Preview — Official preview page of the TS4621ML High-performance class-G stereo headphone amplifier datasheet (STMicroelectronics).

Datasheet Details

Part number	TS4621ML
Manufacturer	STMicroelectronics
File Size	2.20 MB
Description	High-performance class-G stereo headphone amplifier
Datasheet	TS4621ML-STMicroelectronics.pdf

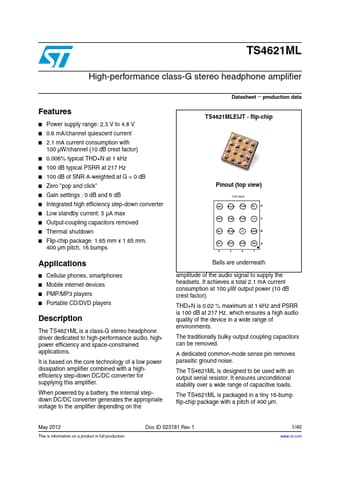

Additional preview pages of the TS4621ML datasheet.

TS4621ML Product details

Description

The TS4621ML is a class-G stereo headphone driver dedicated to high-performance audio, highpower efficiency and space-constrained applications.

Features

Power supply range: 2.3 V to 4.8 V.
0.6 mA/channel quiescent current.
2.1 mA current consumption with 100 µW/channel (10 dB crest factor).
0.006% typical THD+N at 1 kHz.
100 dB typical PSRR at 217 Hz.
100 dB of SNR A-weighted at G = 0 dB.
Zero "pop and click".
Gain settings : 0 dB and 6 dB.
Integrated high efficiency step-down converter.
Low standby current: 5 µA max.
Output-coupling capacitors removed.
Thermal shutdown.
Flip-chip.
