TS4621E - High-performance class-G stereo headphone amplifier

STMicroelectronics

The TS4621E by STMicroelectronics is a High-performance class-G stereo headphone amplifier. Below is the official datasheet preview.

📥 Download Datasheet

TS4621E High-performance class-G stereo headphone amplifier by STMicroelectronics - Datasheet Preview — Official preview page of the TS4621E High-performance class-G stereo headphone amplifier datasheet (STMicroelectronics).

Datasheet Details

Part number	TS4621E
Manufacturer	STMicroelectronics
File Size	1.32 MB
Description	High-performance class-G stereo headphone amplifier
Datasheet	TS4621E-STMicroelectronics.pdf

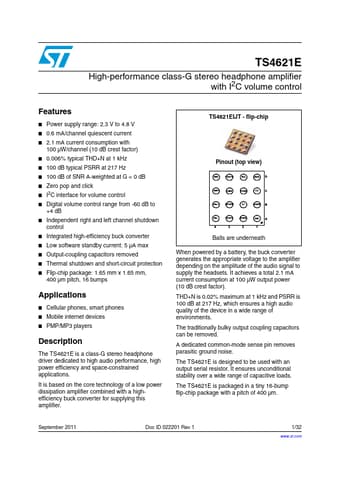

Additional preview pages of the TS4621E datasheet.

TS4621E Product details

Description

The TS4621E is a class-G stereo headphone driver dedicated to high audio performance, high power efficiency and space-constrai

Features

Power supply range: 2.3 V to 4.8 V.
0.6 mA/channel quiescent current.
2.1 mA current consumption with 100 µW/channel (10 dB crest factor).
0.006% typical THD+N at 1 kHz.
100 dB typical PSRR at 217 Hz.
100 dB of SNR A-weighted at G = 0 dB.
Zero pop and click.
I2C interface for volume control.
Digital volume control range from -60 dB to +4 dB.
Independent right and left channel shutdown control.
Integrated high-efficiency buck converter.
