TSH346

Triple video buffer/filter for HD video applications

TSH346 Features

* 6th order filtering of 36 MHz 5 V single-supply operation Internal input DC level shifter No input capacitor required Three matched 6 dB amplifiers AC or DC output-coupled Very low harmonic distortion Specified for 150 Ω loads Minimum and maximu

TSH346 General Description

The TSH346 is a triple single-supply video buffer featuring an internal gain of 6 dB and a 36 MHz filtering for HD video outputs on 75-Ω video lines. The TSH346 is ideal to drive either YUV, YPbPr or RGB signals from video DAC outputs. The main advantage of this circuit is that its input DC level sh.

TSH346 Datasheet (409.42 KB)

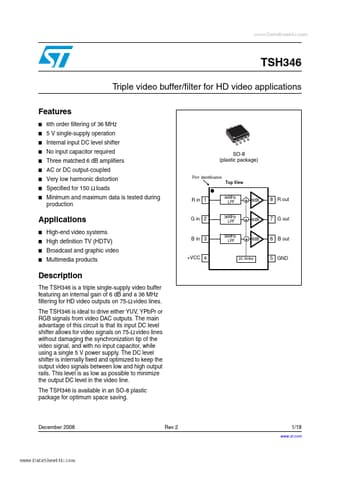

Preview of TSH346 PDF

Datasheet Details

Part number:

TSH346

Manufacturer:

STMicroelectronics ↗

File Size:

409.42 KB

Description:

Triple video buffer/filter for hd video applications.
