VB525SP-E High voltage ignition coil driver power integrated circuit

The VB525SP-E is a high voltage power integrated circuit made using the STMicroelectronics™ VIPower™ M1-3 technology, with Darlington and logic level compatible vertical current flow power driving circuit. The enable pin allows to externally block the switch when the input is on. A built-in protecti.

VB525SP-E Features

* Type VB525SP-E Vcl 380 V Icl 10 A ICC 150 mA

* ECOPACK®: lead free and RoHS compliant

* Primary coil voltage internally set

* Coil current limit internally set

* Logic level compatible input

* Driving current quasi proportional to collector current

* Single flag on coil

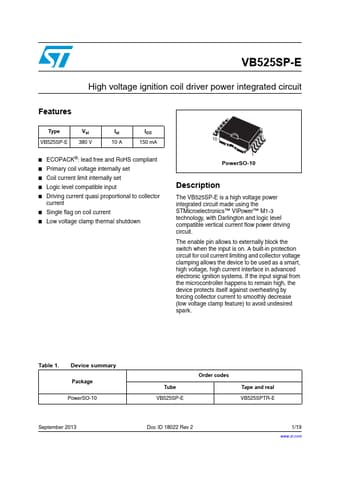

VB525SP-E-STMicroelectronics.pdf
