VB5222, Dual-Channel MOSFET

VB5222 N- and P-Channel 20V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY N-Channel P-Channel VDS (V) 20 - 20 RDS(on) (Ω) 0.022 at VGS = 10 V 0.03.

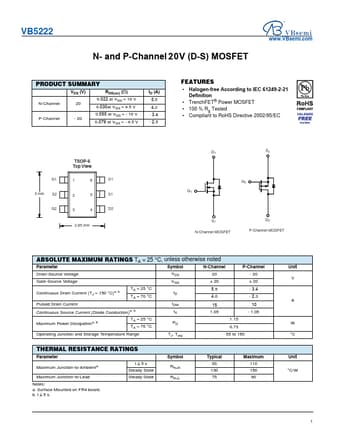

datasheet Preview Page 1 from Datasheet4u.com

VB5222-VBsemi.pdf

VB5222 Datasheet Preview — Preview of VB5222 PDF

Datasheet Details

Part number:

VB5222

Manufacturer:

VBsemi

File Size:

403.04 KB

Description:

Dual-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC TSOP-6 Top View G1 1 6 D1 3 mm S2 2 5 S1 G2 3 4 D2 2.85 mm D1 S2 G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET
