VB526SP-E Datasheet - STMicroelectronics

High voltage ignition coil driver power integrated circuit

VB526SP-E Features

* Type VB526SP-E Vcl 360 V Icl 10 A ICC 150 mA

* ECOPACK®: lead free and RoHS compliant

* Primary coil voltage internally set

* Coil current limit internally set

* Logic level compatible input

* Driving current quasi proportional to collector current

* Single flag on coil

VB526SP-E General Description

The VB526SP-E is a high voltage power integrated circuit made using the STMicroelectronics™ VIPower™ M1-3 technology, with Darlington and logic level compatible vertical current flow power driving circuit. The enable pin allows to externally block the switch when the input is on. A built-in protecti.

VB526SP-E Datasheet (249.10 KB)

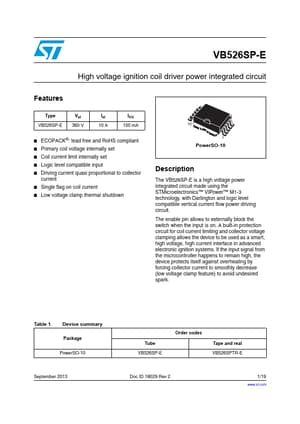

Preview of VB526SP-E PDF

Datasheet Details

Part number:

VB526SP-E

Manufacturer:

STMicroelectronics ↗

File Size:

249.10 KB

Description:

High voltage ignition coil driver power integrated circuit.
