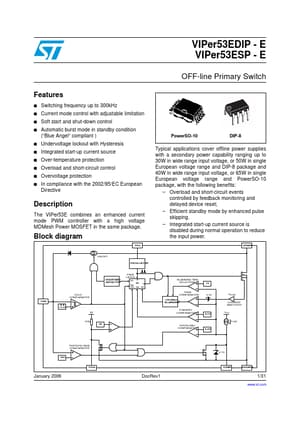

VIPer53EDIP-E Datasheet, Switch, STMicroelectronics

VIPer53EDIP-E Features

• Switch
• Switching frequency up to 300kHz
• Current mode control with adjustable limitation
• Soft start and shut-down control
• Automatic burst mode in standby

PDF File Details

Part number:

VIPer53EDIP-E

Manufacturer:

STMicroelectronics ↗

File Size:

247.97kb

Download:

📄 Datasheet

Description:

Off-line primary switch. The VIPer53E combines an enhanced current mode PWM controller with a high voltage MDMesh Power MOSFET in the same package. Block diag

VIPer53EDIP-E Application

• Applications cover offline power supplies with a secondary power capability ranging up to 30W in wide range input voltage, or 50W in single European
