VN820PT-E

HIGH SIDE DRIVER

VN820PT-E Features

* Type VN820-E VN820B5-E VN820PT-E VN820SO-E VN820SP-E RDS(on) IOUT VCC Figure 1. Package 40 mΩ 9A 36 V 10 1 PowerSO-10™ P2PAK PPAK CMOS COMPATIBLE INPUT ON STATE OPEN LOAD DETECTION

* OFF STATE OPEN LOAD DETECTION

* SHORTED LOAD PROTECTION

* UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN

VN820PT-E General Description

The VN820-E, VN820SP-E, VN820B5-E, VN820SO-E, VN820PT-E are monolithic devices www.DataSheet4U.com made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active V CC pin voltage clamp protects the device against low energy s.

VN820PT-E Datasheet (636.13 KB)

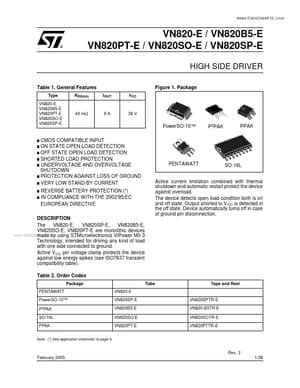

Preview of VN820PT-E PDF

Datasheet Details

Part number:

VN820PT-E

Manufacturer:

STMicroelectronics ↗

File Size:

636.13 KB

Description:

High side driver.
