VN800S-E

HIGH SIDE DRIVER

VN800S-E Features

* Type VN800S-E VN800PT-E RDS(on) 135 mΩ IOUT 0.7 A VCC 36 V Figure 1. Package CMOS COMPATIBLE INPUT THERMAL SHUTDOWN s CURRENT LIMITATION s SHORTED LOAD PROTECTION s UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN s PROTECTION AGAINST LOSS OF GROUND s VERY LOW STAND-BY CURRENT s REVERSE BATTERY PROTECTION (

VN800S-E General Description

The VN800S-E, VN800PT-E are monolithic devices made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. Active current limitation combined with therm.

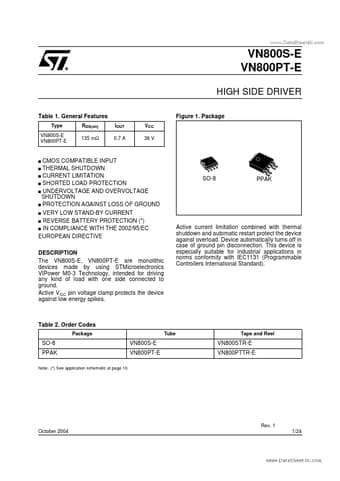

VN800S-E Datasheet (299.75 KB)
