VN800PT

HIGH SIDE DRIVER

STMicroelectronics

VN800PT General Description

The VN800S(8961), VN800PT(8961) are monolithic devices made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient BLOCK DIAGRAM S.

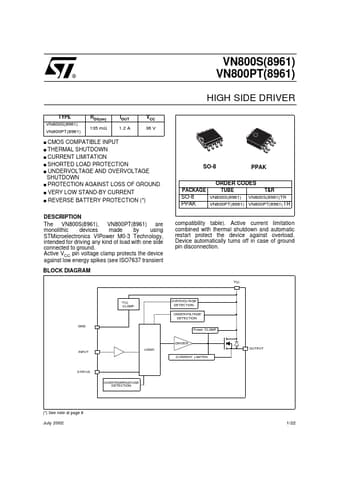

VN800PT Datasheet (362.75 KB)

VN800PT Datasheet Preview — Preview of VN800PT PDF

Datasheet Details

Part number:

VN800PT

Manufacturer:

STMicroelectronics ↗

File Size:

362.75 KB

Description:

High side driver.
® VN800S(8961) / VN800PT(8961) HIGH SIDE DRIVER TYPE VN800S(8961) VN800PT(8961) s s RDS(on) 135 mΩ IOUT 1.2 A VCC 36 V CMOS COMPATIBLE INPUT THE.
