VN808-E Datasheet, Driver, STMicroelectronics

VN808-E Features

• Driver
• VCC/2 compatible input
• Junction overtemperature protection
• Case overtemperature protection for thermal independence of the channels
• Current limit

PDF File Details

Part number:

VN808-E

Manufacturer:

STMicroelectronics ↗

File Size:

494.89kb

Download:

📄 Datasheet

Description:

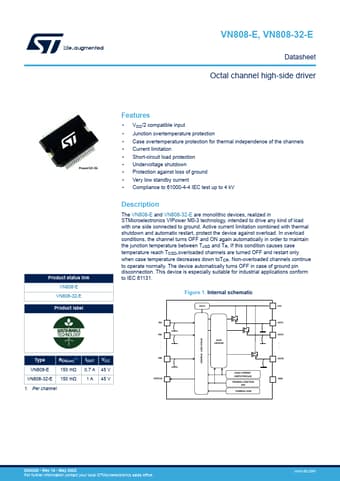

Octal channel high-side driver. The VN808-E and VN808-32-E are monolithic devices, realized in STMicroelectronics VIPower M0-3 technology, intended to drive any kind

VN808-E Application

• Applications conform to IEC 61131. Figure 1. Internal schematic UVLO VCC Type RDS(on)(1) VN808-E 150 mΩ VN808-32-E 150 mΩ 1. Per channel I
