VN800PT-E, VN800S-E Datasheet - ST Microelectronics

VN800PT-E HIGH SIDE DRIVER

The VN800S-E, VN800PT-E are monolithic devices made by using STMicroelectronics VIPower M0-3 Technology, intended for driving any kind of load with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. Active current limitation combined with therm.

VN800PT-E Features

* Type VN800S-E VN800PT-E RDS(on) 135 mΩ IOUT 0.7 A VCC 36 V Figure 1. Package CMOS COMPATIBLE INPUT THERMAL SHUTDOWN s CURRENT LIMITATION s SHORTED LOAD PROTECTION s UNDERVOLTAGE AND OVERVOLTAGE SHUTDOWN s PROTECTION AGAINST LOSS OF GROUND s VERY LOW STAND-BY CURRENT s REVERSE BATTERY PROTECTION (

VN800S-E_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: VN800PT-E, VN800S-E. Please refer to the document for exact specifications by model.

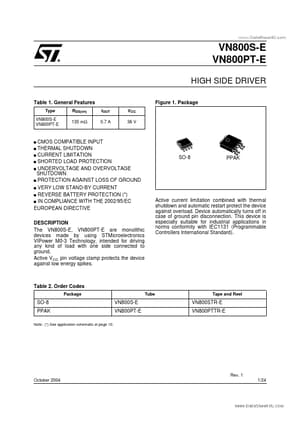

VN800PT-E Datasheet Preview Page 2 VN800PT-E Datasheet Preview Page 3

Datasheet Details

Part number:

VN800PT-E, VN800S-E

Manufacturer:

STMicroelectronics ↗

File Size:

299.75 KB

Description:

High side driver.

Note:

This datasheet PDF includes multiple part numbers: VN800PT-E, VN800S-E.
Please refer to the document for exact specifications by model.
