VN9D5D20FN Datasheet - STMicroelectronics

VN9D5D20FN-STMicroelectronics.pdf

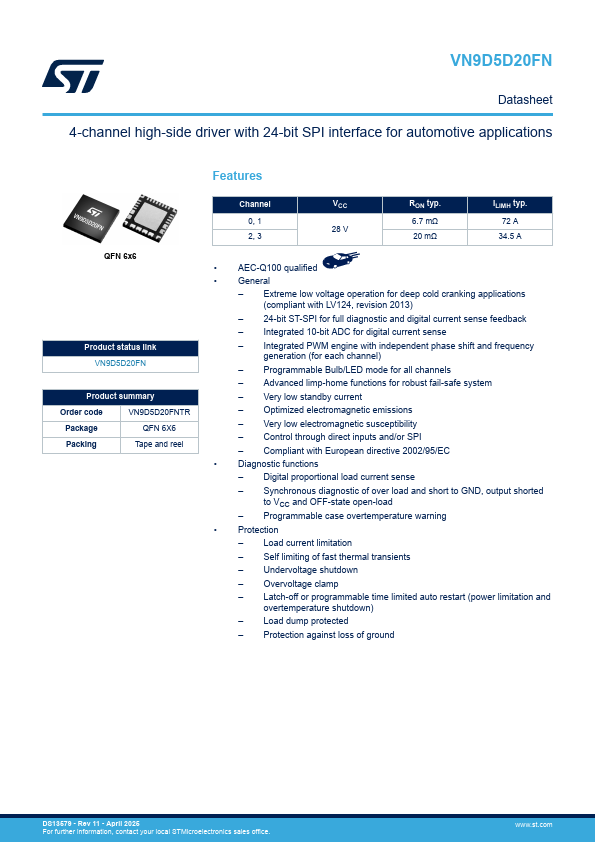

Preview of VN9D5D20FN PDF

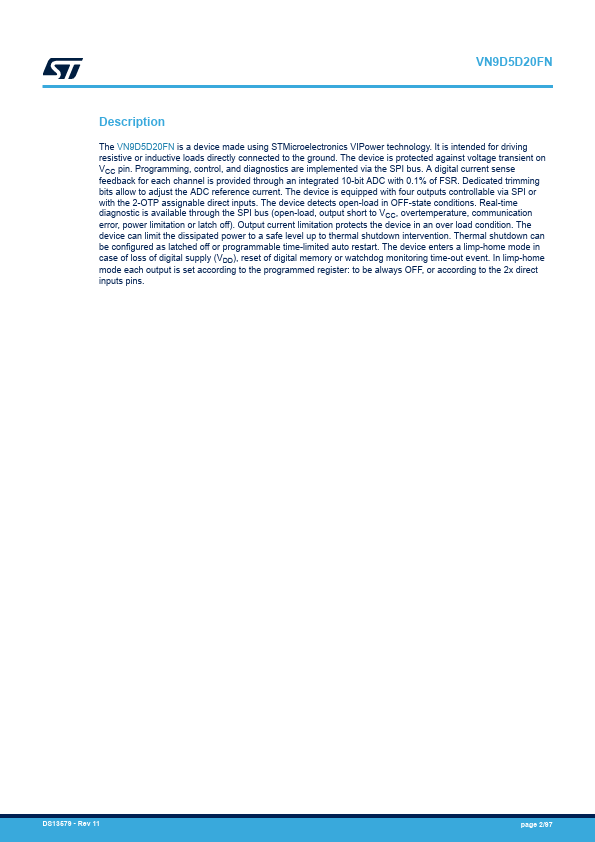

VN9D5D20FN Datasheet Preview Page 2 VN9D5D20FN Datasheet Preview Page 3

Datasheet Details

Part number:

VN9D5D20FN

Manufacturer:

STMicroelectronics ↗

File Size:

2.53 MB

Description:

4-channel high-side driver.

VN9D5D20FN, 4-channel high-side driver

The VN9D5D20FN is a device made using STMicroelectronics VIPower technology.

It is intended for driving resistive or inductive loads directly connected to the ground.

The device is protected against voltage transient on VCC pin.

Programming, control, and diagnostics are implemented via the SPI bus.

VN9D5D20FN Features

* Channel 0, 1 2, 3 VCC 28 V RON typ. 6.7 mΩ 20 mΩ ILIMH typ. 72 A 34.5 A

* AEC-Q100 qualified

* General

* Extreme low voltage operation for deep cold cranking applications (compliant with LV124, revision 2013)

* 24-bit ST-SPI for full diagnostic and digital current
