VNB35N07-E

fully autoprotected Power MOSFET

VNB35N07-E Features

* Type VNP35N07-E VNB35N07-E VNV35N07-E Vclamp 70 V 70 V 70 V RDS(on) 0.028 Ω 0.028 Ω 0.028 Ω Ilim 35 A 35 A 35 A Datasheet - production data

* Diagnostic feedback through input pin

* ESD protection

* Direct access to the gate of the Power MOSFET (analog driving)

VNB35N07-E General Description

The VNP35N07-E, VNB35N07-E and VNV35N07-E are monolithic devices made using STMicroelectronics VIPower® technology, intended for replacement of standard Power MOSFETs in DC to 50 KHz applications. Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh en.

VNB35N07-E Datasheet (327.40 KB)

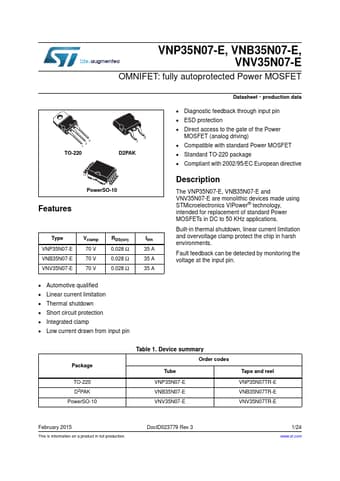

Preview of VNB35N07-E PDF

Datasheet Details

Part number:

VNB35N07-E

Manufacturer:

STMicroelectronics ↗

File Size:

327.40 KB

Description:

Fully autoprotected power mosfet.
