VND7020AJ-E

Double channel high-side driver

VND7020AJ-E Features

* Max transient supply voltage Operating voltage range VCC VCC 40 V 4 to 28 V 22 mΩ 63 A 0.5 µA Typ. on-state resistance (per Ch) RON Current limitation (typ) Stand-by current (max) ILIMH ISTBY 1PXFS440 ("1($'5 Applications

* General

* Double channel smart high side driv

VND7020AJ-E General Description

The VND7020AJ-E is a double channel high-side driver manufactured using ST proprietary VIPower® M0-7 technology and housed in PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics. The.

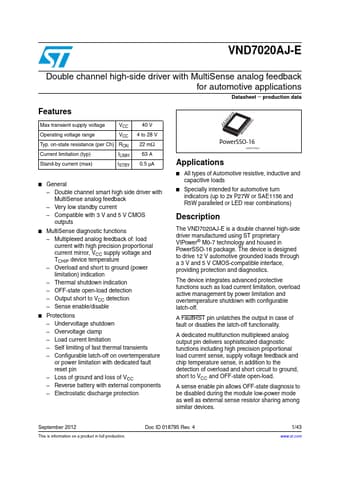

VND7020AJ-E Datasheet (1.08 MB)

Preview of VND7020AJ-E PDF

Datasheet Details

Part number:

VND7020AJ-E

Manufacturer:

STMicroelectronics ↗

File Size:

1.08 MB

Description:

Double channel high-side driver.
