VND5050K-E

Double channel high side driver

VND5050K-E Features

* General Max supply voltage Operating voltage range Max On-State resistance (per ch.) Current limitation (typ) Off state supply current (

* ) Typical value with all loads connected VCC VCC RON ILIMH IS 41V 4.5 to 36V 50 mΩ 19 A 2 µA(

* )

* PowerSSO-12 PowerSSO-24 Self limiting of f

VND5050K-E General Description

The VND5050K-E and VND5050J-E is a monolithic device made using STMicroelectronics VIPower M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient com.

VND5050K-E Datasheet (761.95 KB)

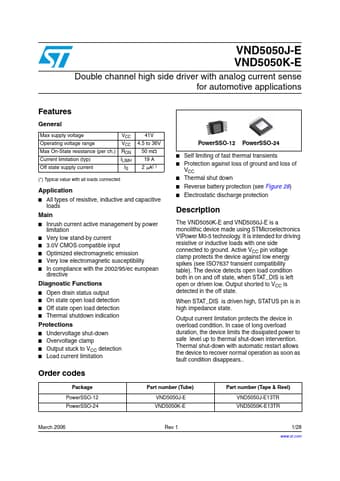

Preview of VND5050K-E PDF

Datasheet Details

Part number:

VND5050K-E

Manufacturer:

STMicroelectronics ↗

File Size:

761.95 KB

Description:

Double channel high side driver.
